Commlite CM-MET-E Metal Auto Focus Macro Extension Tube for Sony E mount camera NEX
Commlite CM-MET-E Automatic Macro Extension Tube for E-Mount Camera
Description

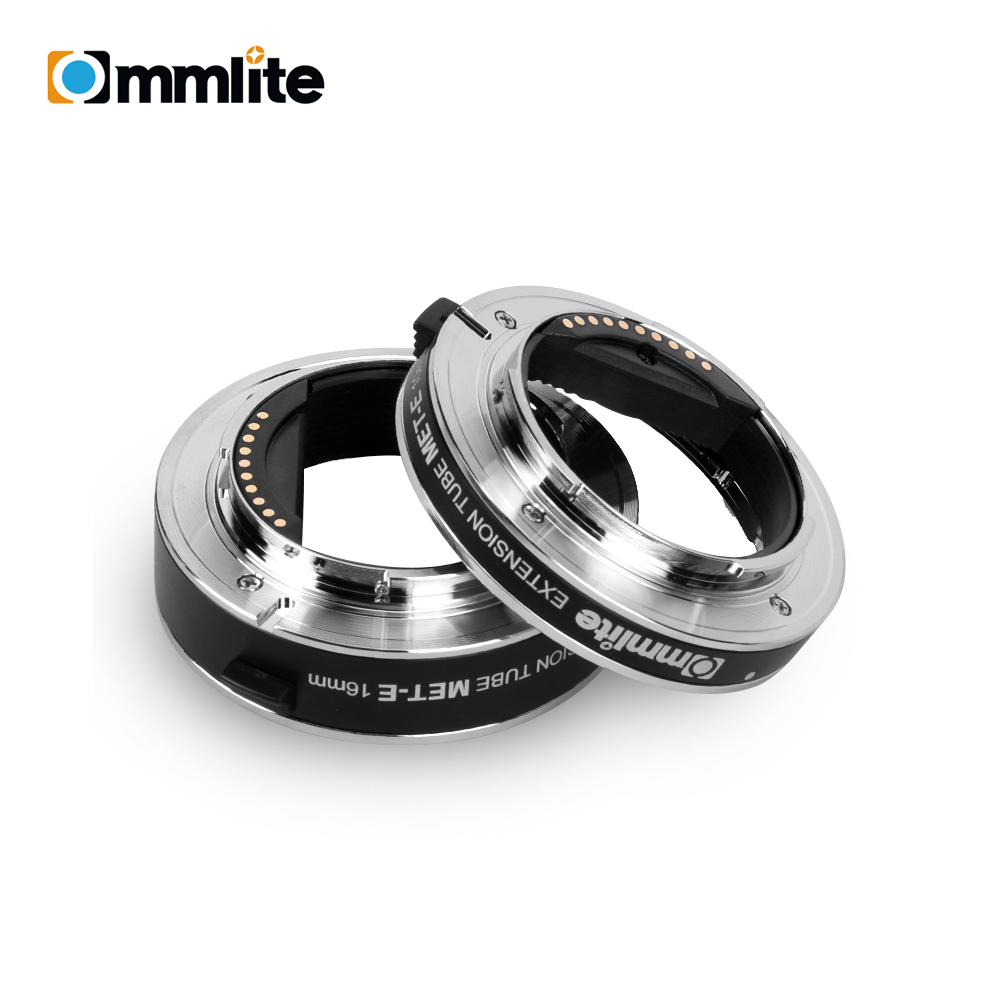

Automatic Macro Extension Tube for E-Mount camera is composed by two different ring(10mm, 16mm) which can be used alone or combined (3 Different Combinations) to meet your needs for different close-up magnification. The connector is designed with new electronic technology, which can help you to achieve Auto-focus and TTL Exposure functions, it also supports Full-Frame Shooting. It is a wonderful partner for Sony E-Mount lens and camera used for Macro Shooting !
Main Features
Focus on Exact Macro Shooting
Support Exact TTL Exposure and Auto-focus
Built-in Electronic Pins and Internal Driver
Support All NEX Series and Full-Frame E-Mount Cameras
Made of High-quality Aluminum Alloy, Powerful and Stable

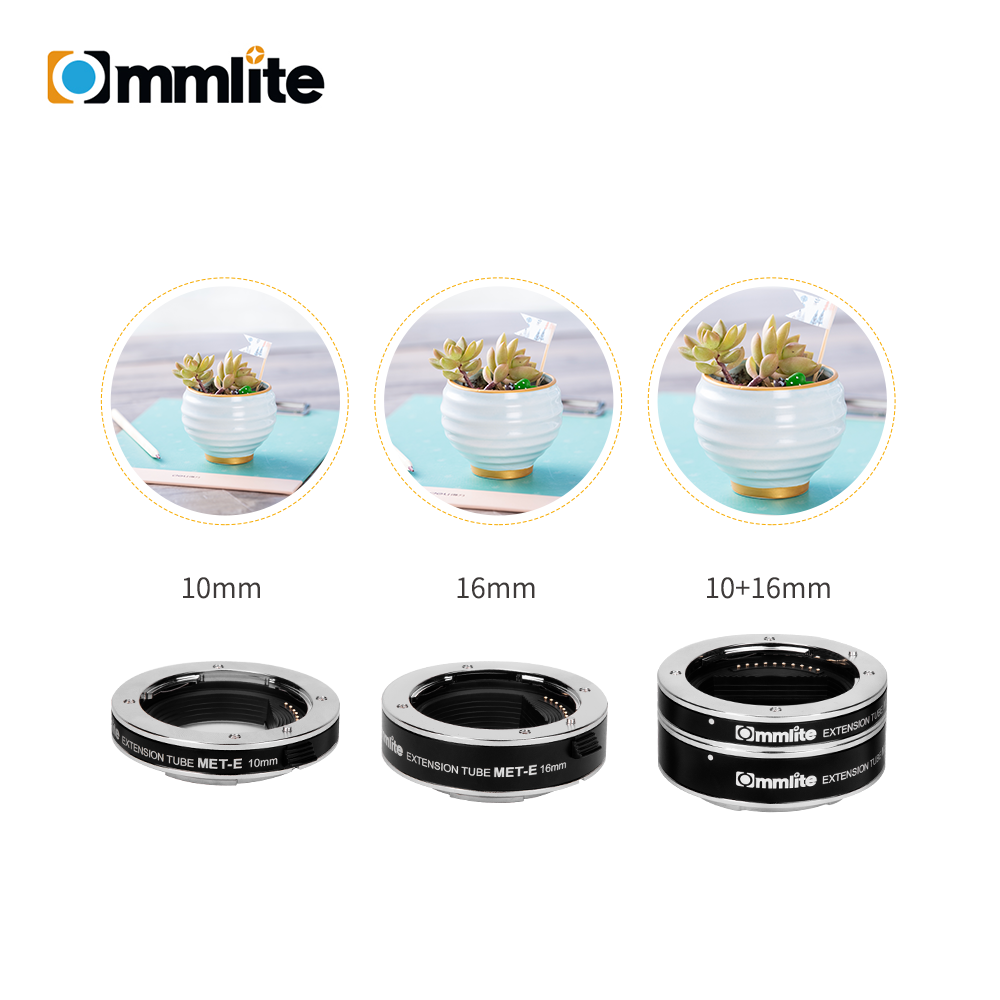

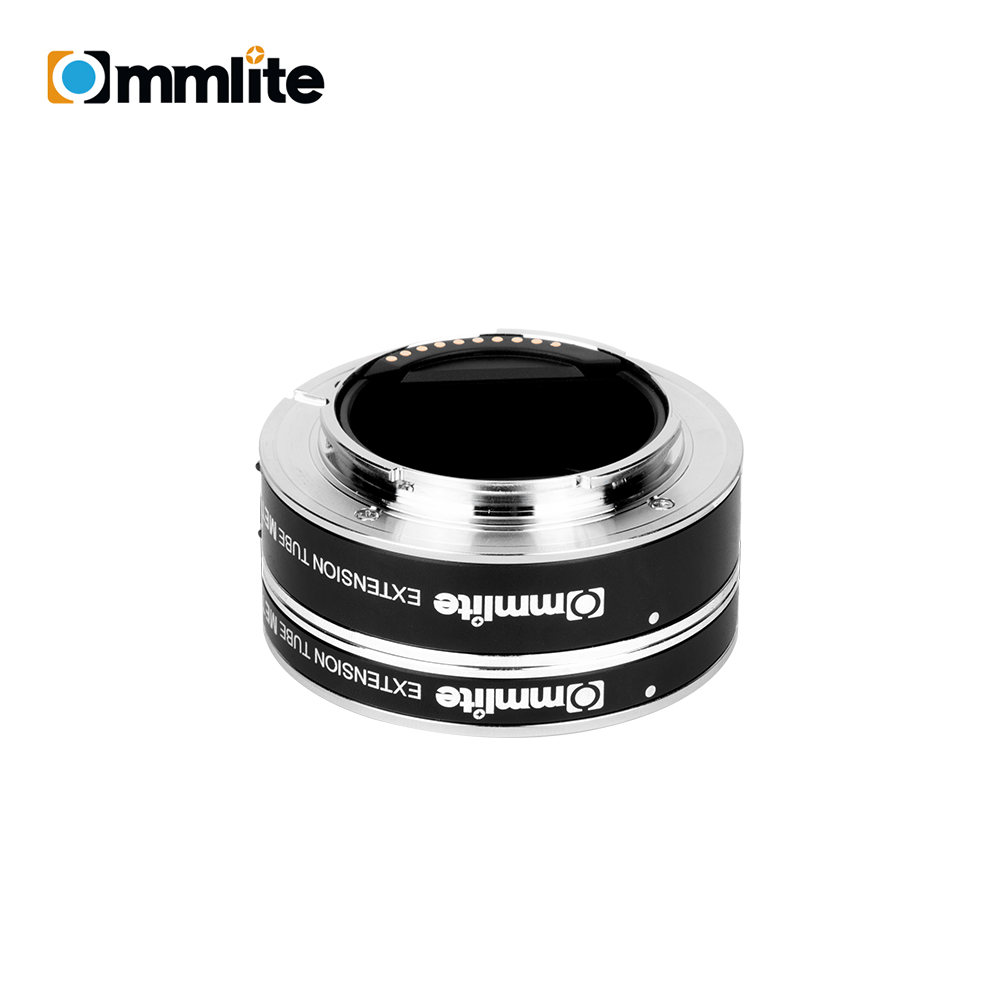

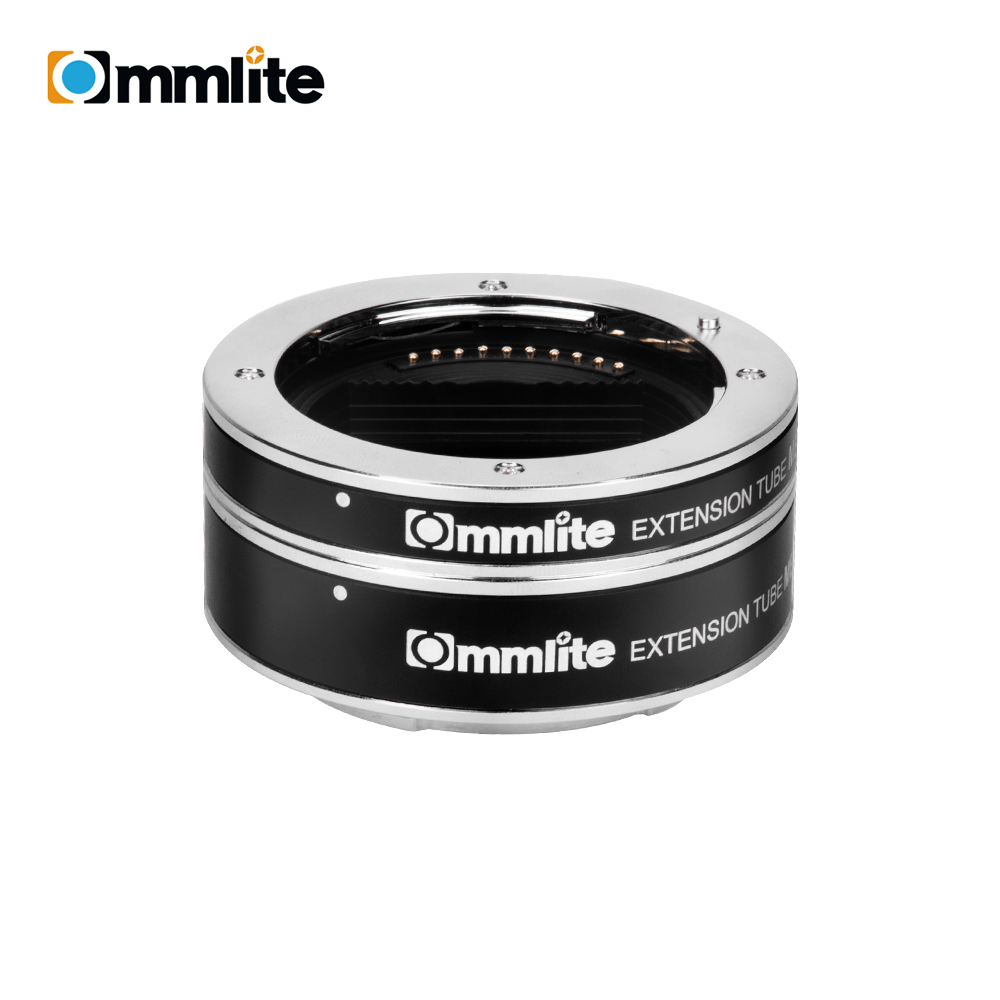

Including Two Tubes(10mm, 16mm), 3 Different Combinations
New Electronic Technology, Convenient for Macro Shooting
Compact and Delicate
Notice
1.Extension Tube is only suitable for macro shooting, it can't focus infinitely after installing
2.The focusing distance is limited after installing Extension Tube, and the focusing range is different with different focal lengths so you can adjust the focal length by changing the distance between the object and the camera or by operating the zoom device of the main lens
3.Take care that the exposure needs to be increased after installing Extension Tube (The use of tripod and flash is advisable)
4.Support Auto-focus, it's best to switch to manual focus mode if the subject’s depth becomes shallow
Specification
Compatible Lens E-Mount Lens
Compatible Camera E-Mount Camera
Front Installation E-Mount Lens
Rear Installation E-Mount Camera
Camera-Mount Outer Diameter 62mm
Lens-Mount Outer Diameter 62mm
Length 33mm
Net Weight 77g
Auto Extension Tube |
10mm |
16mm |
10+16mm |
Distance Reading of Master Lens |
lnf. 0.5m |
lnf. 0.5m |
lnf. 0.5m |
Image Magnification Ratio |
0.2 0.31 |
0.32 0.43 |
0.52 0.63 |
Field Coverage (cm) |
6.5 x 8.7 4.2 x 5.6 |
4.1 x 5.4 3.0 x 4.0 |
2.5 x 3.3 2.1 x 2.7 |
Exposure Factor |
1.44 1.72 |
1.74 2.04 |
2.31 2.66 |
